XA-MIG185V-K

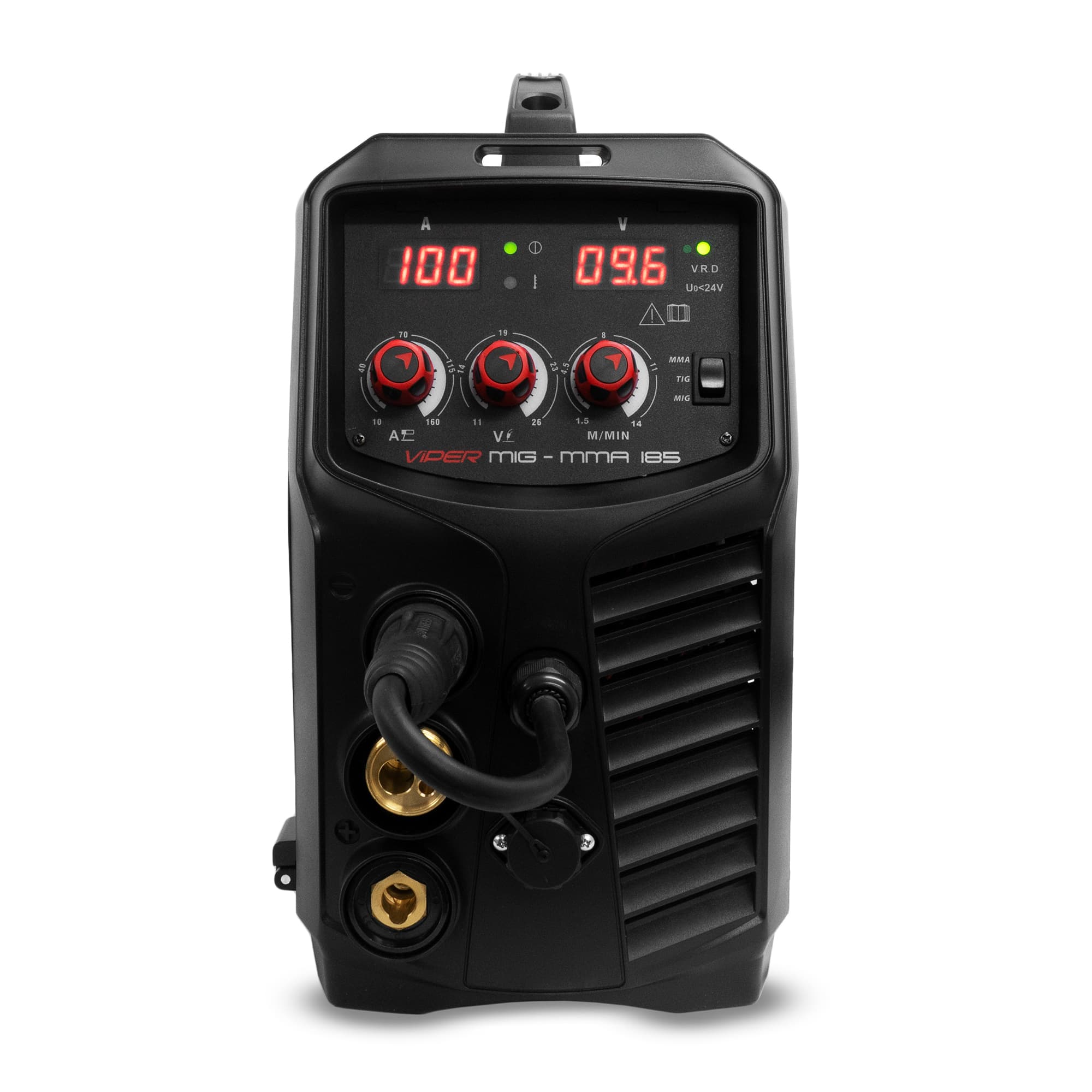

VIPER™ 185 MIG/TIG/STICK Welder

The VIPER™ 185 is the ultimate multi-process welder for the DIY enthusiast. MIG, TIG or STICK, the VIPER™ does it all, and it’s ready to go anywhere you have a standard 10-amp outlet. Get repairs done and see your projects come together in record time with the ability to change modes with the flick of a switch.

The VIPER™ 185 is the perfect solution for those looking for insane performance without needing to blow your budget on multiple welders.

XA-MIG185V-K

FIND A STORE

ADD TO WISHLIST

10 AMP PLUG

Connect to any standard outlet.

SPOOL GUN READY

For softer wires, such as Aluminium.

VOLTAGE REDUCTION DEVICE

Prevents Voltage overloading, protecting yourself and the machine.

GEARED WIRE DRIVE

For smoother wire feeding.

Product No: XA-MIG185V-K

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

10 AMP

RATED INPUT POWER (kVA)

7.1

Ieff (A)

9.8

RATED OUTPUT

30A/15.5V - 180A/23.0V

NO LOAD VOLTAGE (V)

PROTECTION CLASS

IP21S

INSULATION CLASS

POWER FACTOR

0.7

MINIMUM GENERATOR (kVA)

10.0

DINSE CONNECTOR

35/50

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL

Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper

WARRANTY (Years)

MIG Specifications

MIG WELDING CURRENT RANGE

30-180A

MIG DUTY CYCLE @ 40°C

10% @ 180A

MIG WIRE SIZE RANGE

0.6-0.9mm

MIG WIRE SPOOL SIZE

1kg / 5kg

MIG WELDING THICKNESS RANGE

1-6mm

DRIVE ROLLER SIZE

30/22

TIG SPECIFICATIONS

TIG FUNCTION TYPE

DC Lift Arc

TIG WELDING CURRENT RANGE

10-160A

TIG DUTY CYCLE @ 40°C

10% @ 160A

TIG WELDING THICKNESS RANGE

1-6mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

10-160A

STICK DUTY CYCLE @ 40°C

10% @ 160A

STICK ELECTRODE RANGE

2.5-3.2mm

STICK WELDING THICKNESS RANGE

2-7mm

Size & Weight

DIMENSIONS (mm)

553x214x388mm

WEIGHT (kg)

12.0kg

MACHINE FEATURES

WIRE DRIVE

Geared

VRD

Yes

SPOOL GUN CONNECTION

Yes

BURNBACK ADJUSTMENT

Yes

WIRE INCH

Yes

THERMAL OVERLOAD PROTECTION

Yes

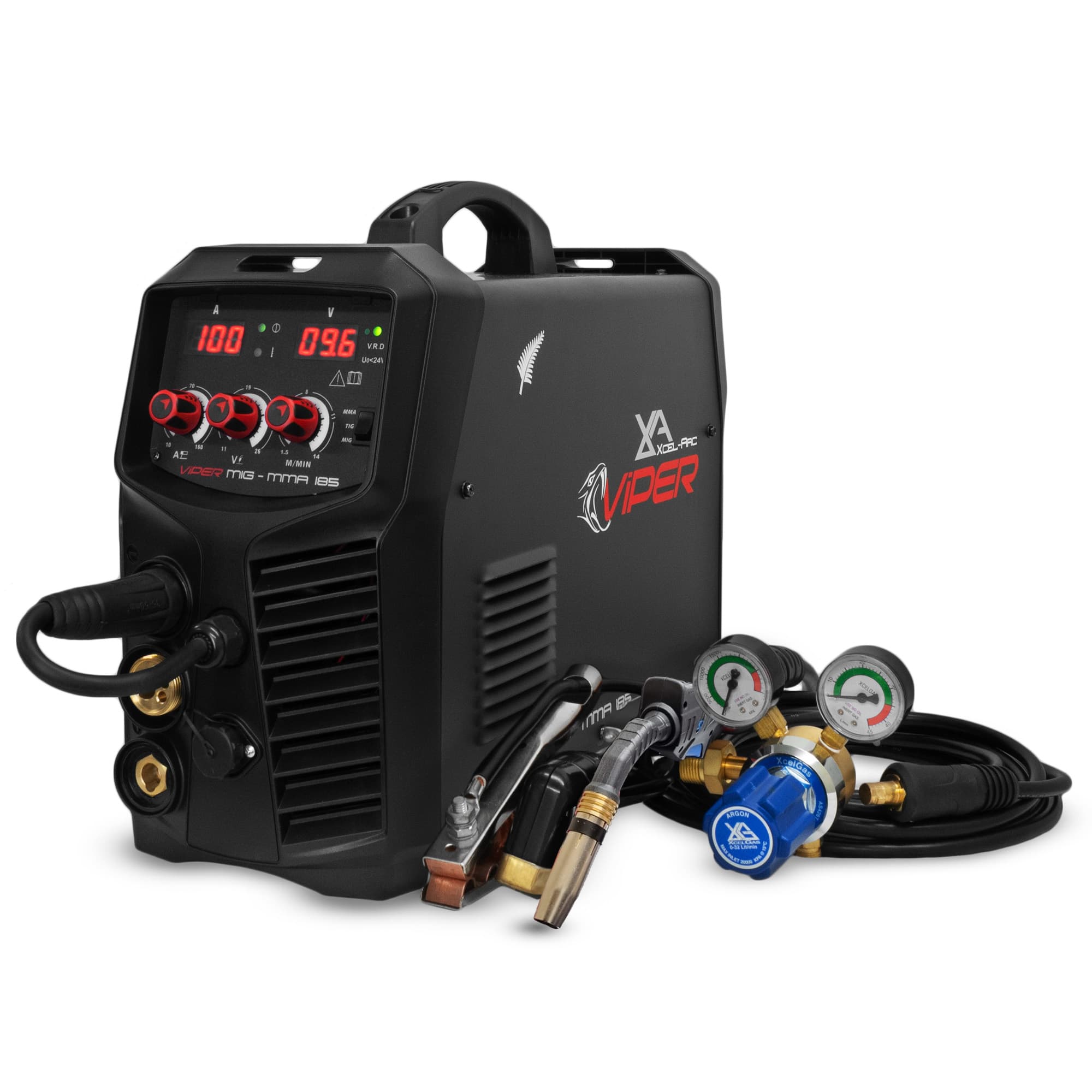

VIPER 185 MIG/TIG/STICK Welder
3m XA15 MIG Torch (including consumables)
3m Earth Lead & Arc Lead
Argon Regulator
2m Gas Hose Complete with fittings
Operating Manual

Here you’ll find the latest manuals, guides & product/parts information.

VIPER 185 Info Sheet

VIPER 185 Manual

Wire Feeder Drive Rollers Spares

Xcel-Arc is pleased to offer a 2 year warranty on the VIPER™ 185*.

Xcel-Arc offers warranty across New Zealand with our main Xcel-Arc service centre centrally based in Palmerston North. We also have authorised service centres across New Zealand as well. Xcel-Arc’s focus is to assure the buyer is getting reliability, performance and peace of mind with a quality product.

Xcel-Arc also offers an additional 6 months warranty free of charge when you register your product online via the Xcel-Arc website.

*Please note warranty only applies to the power source only
