XA-RZMIG250PFC-K

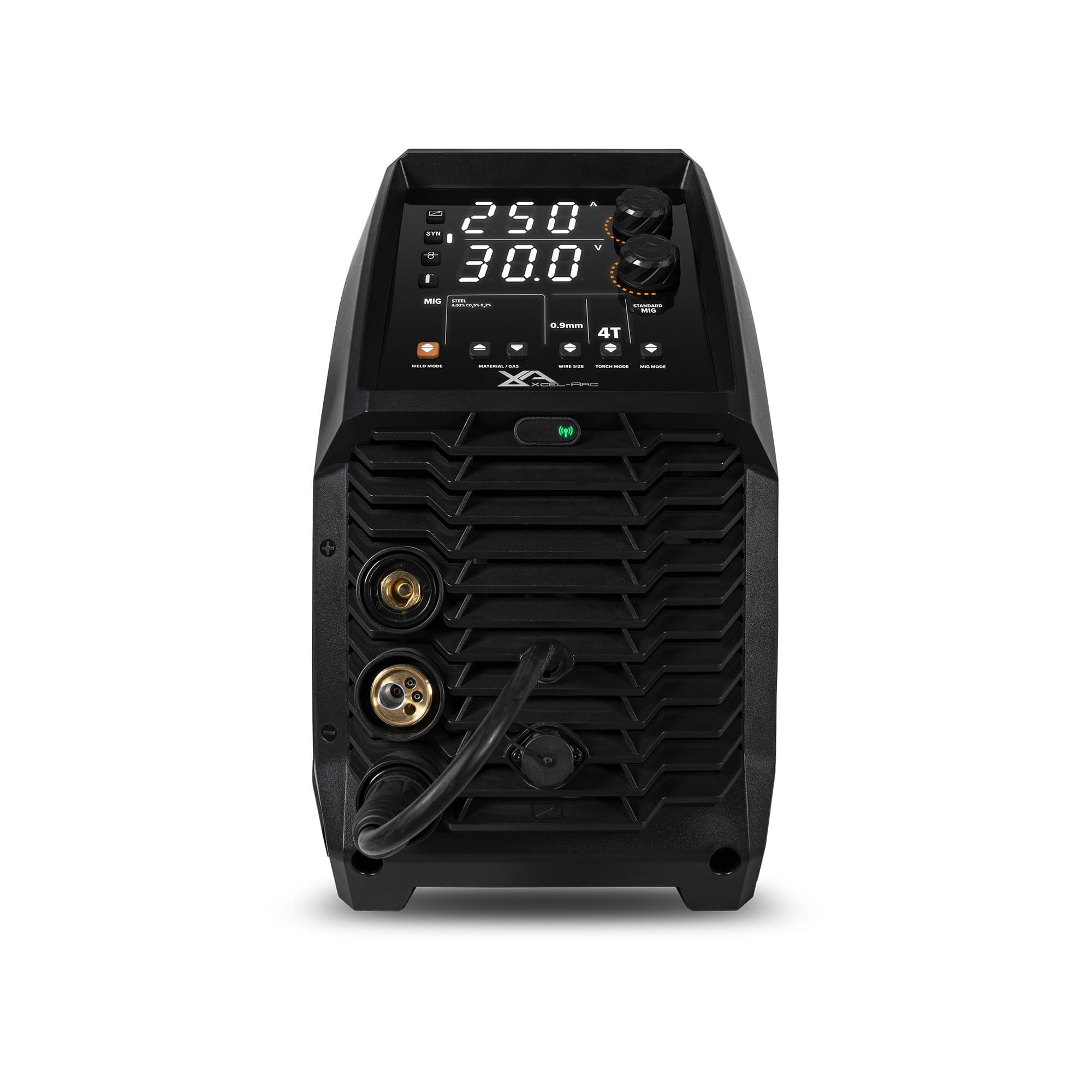

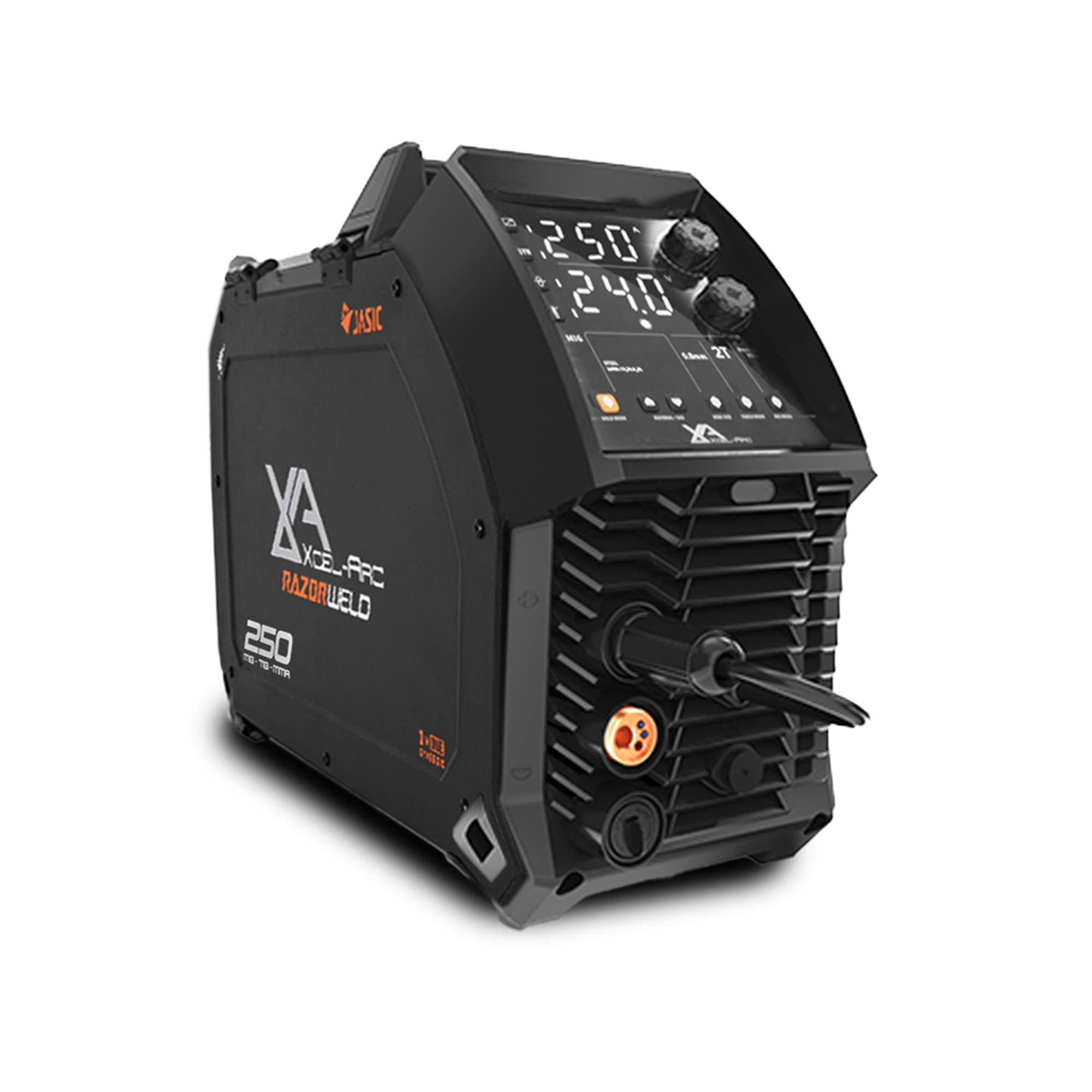

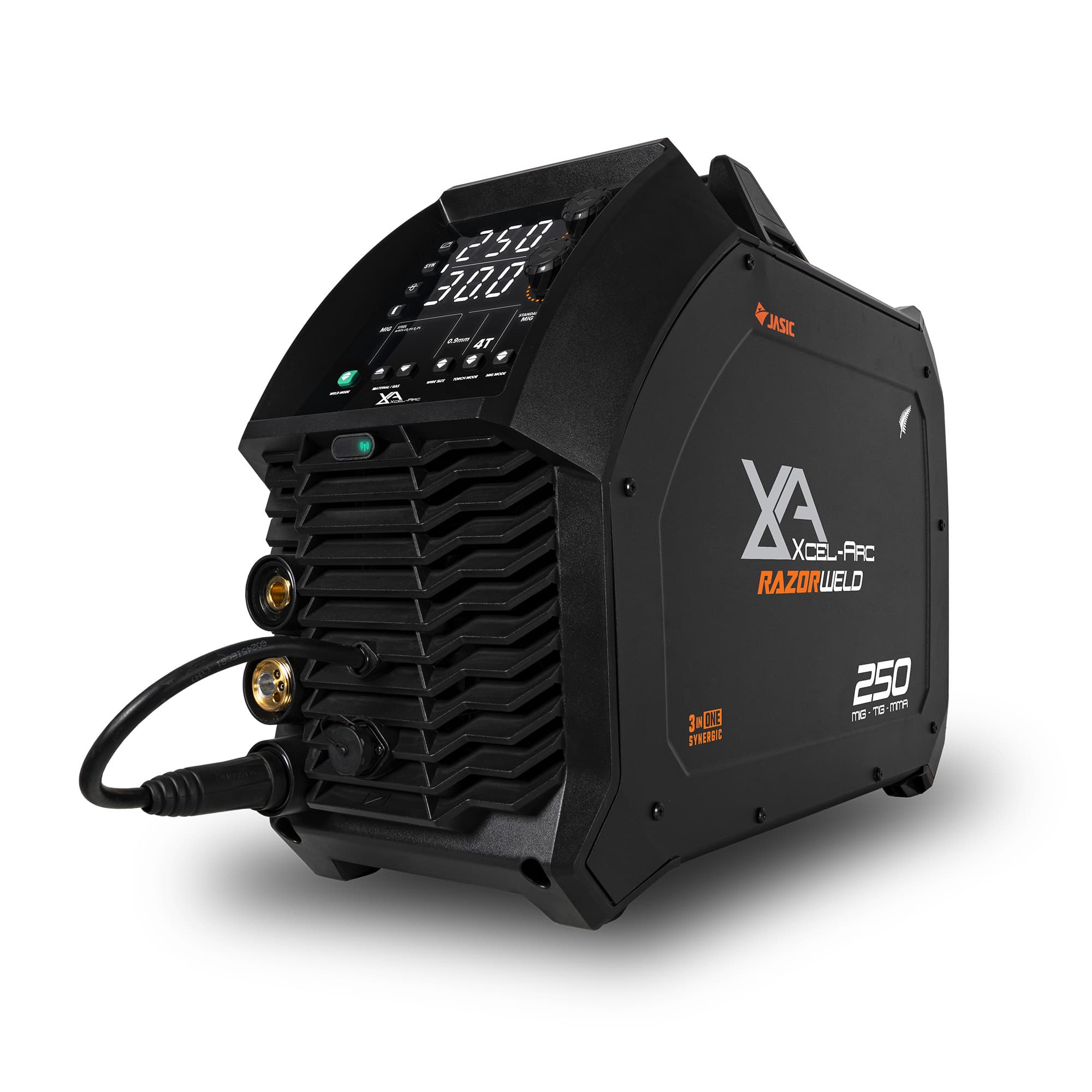

RAZORWELD™ 250 PFC MIG/TIG/STICK Welder

Get powerful MIG, TIG & STICK performance on your worksite or in your workshop with the professional machine packaged in a portable case.

Quick and easy setup with synergic MIG programs
Spool gun ready for the best aluminium welds
4 geared wire drive system for the ultimate wire feeding experience
A 5-year warranty to reflect our confidence in this machine

XA-RZMIG250PFC-K

FIND A STORE

ADD TO WISHLIST

SINGLE PHASE

240V Power

SPOOL GUN READY

For softer wires, such as Aluminium.

LARGE WIRE SPOOL CAPACITY

Fits 200mm & 300mm wire spools.

4 GEARED WIRE DRIVE

For smoother wire feeding.

Product No: XA-RZMIG250PFC-K

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

15 AMP

RATED INPUT POWER (kVA)

15.0

Ieff (A)

28.0

RATED OUTPUT

30A/15.5V - 250A/26.5V

NO LOAD VOLTAGE (V)

PROTECTION CLASS

IP23S

INSULATION CLASS

MINIMUM GENERATOR (kVA)

11.0

DINSE CONNECTOR

35/50

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL

MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze / MMA: Mild Steel, Stainless Steel, Cast Iron / TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze

WARRANTY (Years)

MIG Specifications

MIG WELDING CURRENT RANGE

30-250A

MIG DUTY CYCLE @ 40°C

20% @ 250A / 60% @ 144A / 100% @ 112A

MIG WIRE SIZE RANGE

0.6-1.2mm

MIG WIRE SPOOL SIZE

5kg / 15kg

MIG WELDING THICKNESS RANGE

1-9mm

DRIVE ROLLER SIZE

30/22

TIG SPECIFICATIONS

TIG FUNCTION TYPE

Trigger Controlled DC Lift Arc

TIG WELDING CURRENT RANGE

5-250A

TIG DUTY CYCLE @ 40°C

20% @ 250A / 60% @ 144A / 100% @ 112A

TIG WELDING THICKNESS RANGE

1-9mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

20-250A

STICK DUTY CYCLE @ 40°C

20% @ 220A / 60% @ 127A / 100% @ 98A

STICK ELECTRODE RANGE

2.5-4.0mm

STICK WELDING THICKNESS RANGE

2-12mm

Size & Weight

DIMENSIONS (mm)

700x280x551mm

WEIGHT (kg)

25.5

MACHINE FEATURES

WIRE DRIVE

Geared

VRD

Yes

SPOOL GUN CONNECTION

Yes

PUSH / PULL GUN CONNECTION

Yes

FOOT CONTROL CONNECTION

Yes

BURNBACK ADJUSTMENT

Yes

WIRE INCH

Yes

INDUCTANCE CONTROL

Yes

THERMAL OVERLOAD PROTECTION

Yes

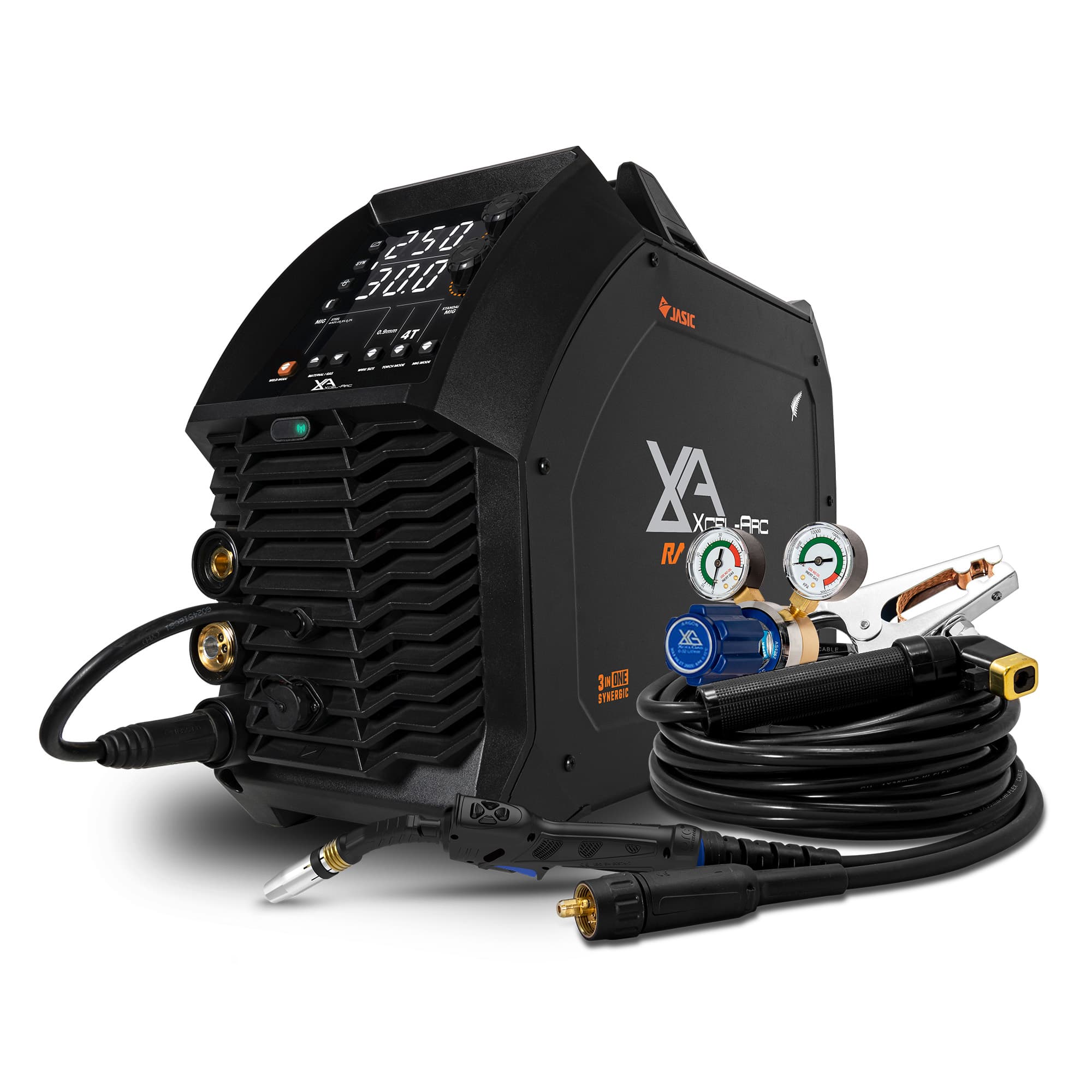

RAZORWELD™ 250 PFC MIG/TIG/STICK Welder
XA24 Mig Torch x 4m
Earth Lead & Arc Lead 25mm x 4m
Argon Regulator
Operating Manual

Here you’ll find the latest manuals, guides & product/parts information.

RAZORWELD 250 PFC Info Sheet

RAZORWELD 250 PFC Manual

Xcel-Arc is pleased to offer a 5-year warranty on RAZORWELD™ MIG250 PFC Machines*.

Xcel-Arc offers warranty across New Zealand with our main Xcel-Arc service centre centrally based in Palmerston North. We also have authorised service centres across New Zealand as well. Xcel-Arc’s focus is to assure the buyer is getting reliability, performance and peace of mind with a quality product.

Xcel-Arc also offers an additional 6 months warranty free of charge when you register your product online via the Xcel-Arc website.

*Please note warranty only applies to the power source only
