XA-RZTIG200ACDCPFC-T3

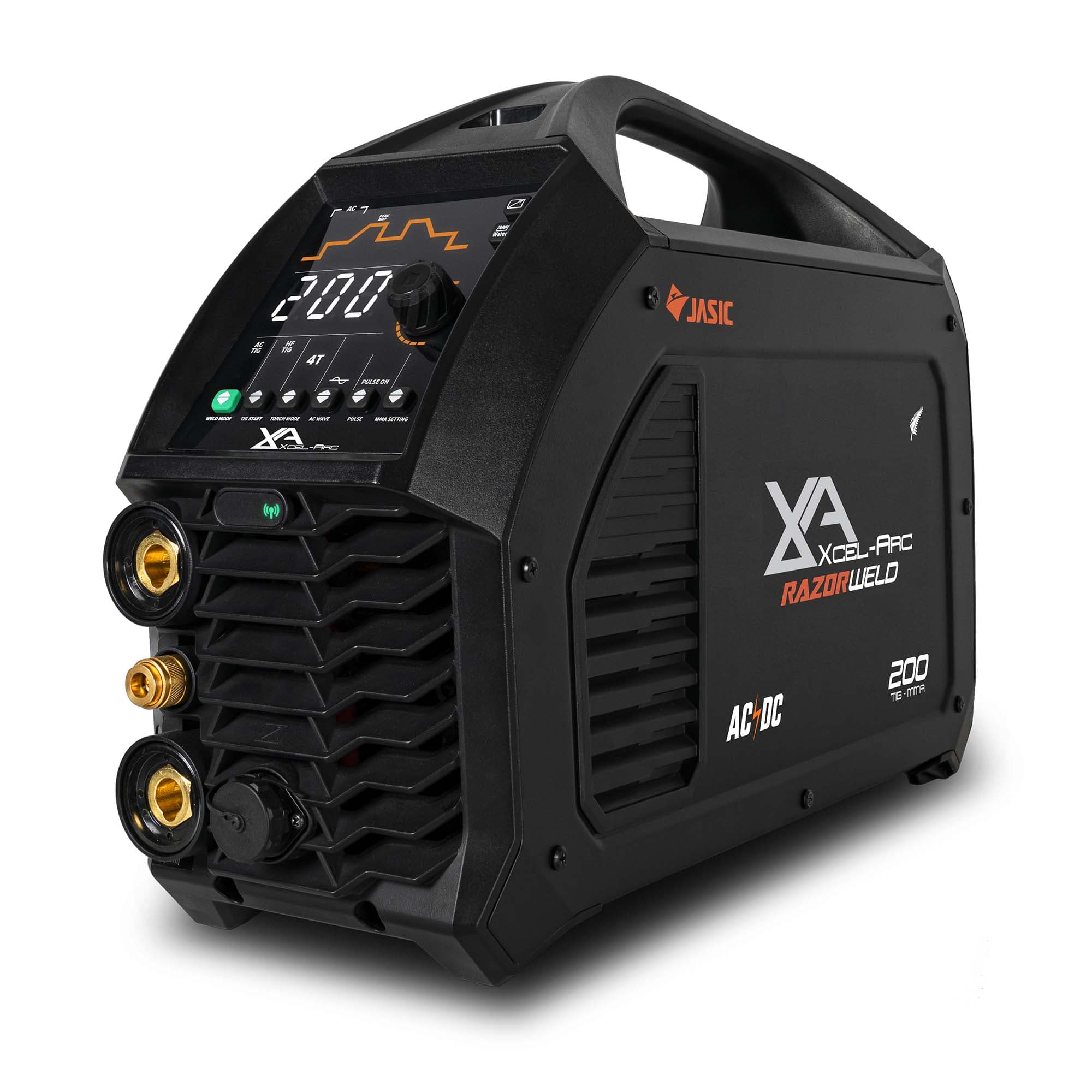

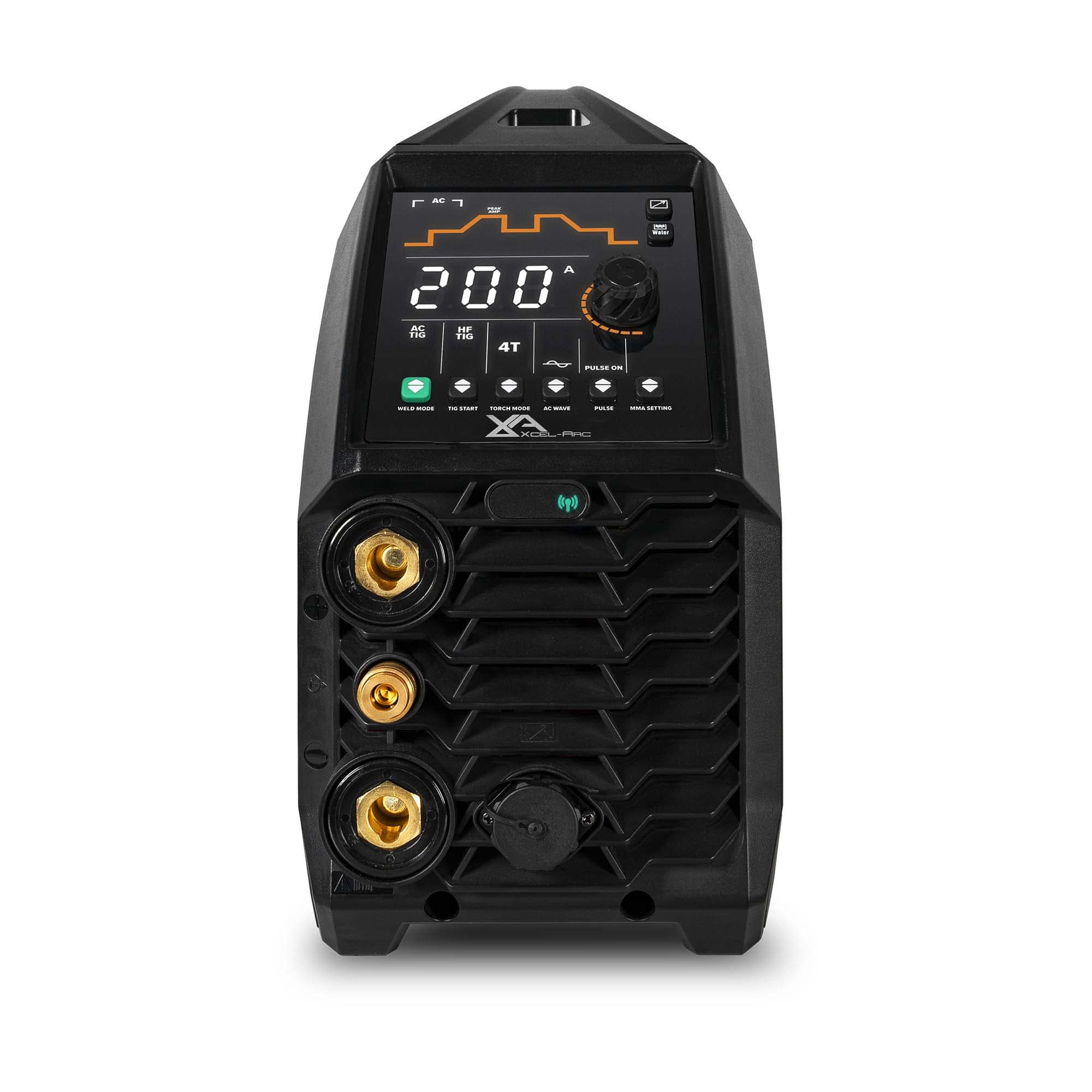

RAZORWELD™ 200 AC/DC PFC TIG Welder

Get incredible results from start to finish with this professional-grade TIG welder.

Effortlessly weld any metal with the high-frequency AC/DC TIG
The ultimate combination of AC and DC available with Mixed Arc settings
Switch your AC welds to suit your needs with the choice of three waveforms
A 5-year warranty to reflect our confidence in this machine

XA-RZTIG200ACDCPFC-T3

FIND A STORE

ADD TO WISHLIST

10 AMP PLUG

Connect to a 10 AMP outlet.

AC/DC HIGH FREQUENCY TIG

PERFECT FOR ALUMINIUM.

PULSE FUNCTION

MINIMISE DISTORTION ON THE WELDED MATERIAL.

FOOT CONTROL READY

EXTRA VERSATILITY AND CONVENIENCE.

Product No: XA-RZTIG200ACDCPFC-T3

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

10 AMP

Ieff (A)

9.5

RATED OUTPUT

5-200A

NO LOAD VOLTAGE (V)

PROTECTION CLASS

IP23S

INSULATION CLASS

MINIMUM GENERATOR (kVA)

9.0

DINSE CONNECTOR

35/50

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL

TIG: Aluminium, Magnesium, Zinc Alloys, Mild Steel, Stainless Steel, Copper, Silicon Bronze, Titanium / MMA: Mild Steel, Stainless Steel, Cast Iron

WARRANTY (Years)

TIG SPECIFICATIONS

TIG FUNCTION TYPE

AC/DC HF TIG & AC/DC Pulse

TIG WELDING CURRENT RANGE

5-200A

TIG DUTY CYCLE @ 40°C

20% @ 200A, 60% @ 115A, 100% @ 90A

TIG WELDING THICKNESS RANGE

1-8mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

20-160A

STICK DUTY CYCLE @ 40°C

15% @ 160A, 60% @ 80A, 100% @ 62A

STICK ELECTRODE RANGE

2.5-4.0mm

STICK WELDING THICKNESS RANGE

2-10mm

Size & Weight

DIMENSIONS (mm)

500×170×340mm

WEIGHT (kg)

11.7kg

MACHINE FEATURES

VRD

Yes

FOOT CONTROL CONNECTION

YES

THERMAL OVERLOAD PROTECTION

Over Temperature Warning

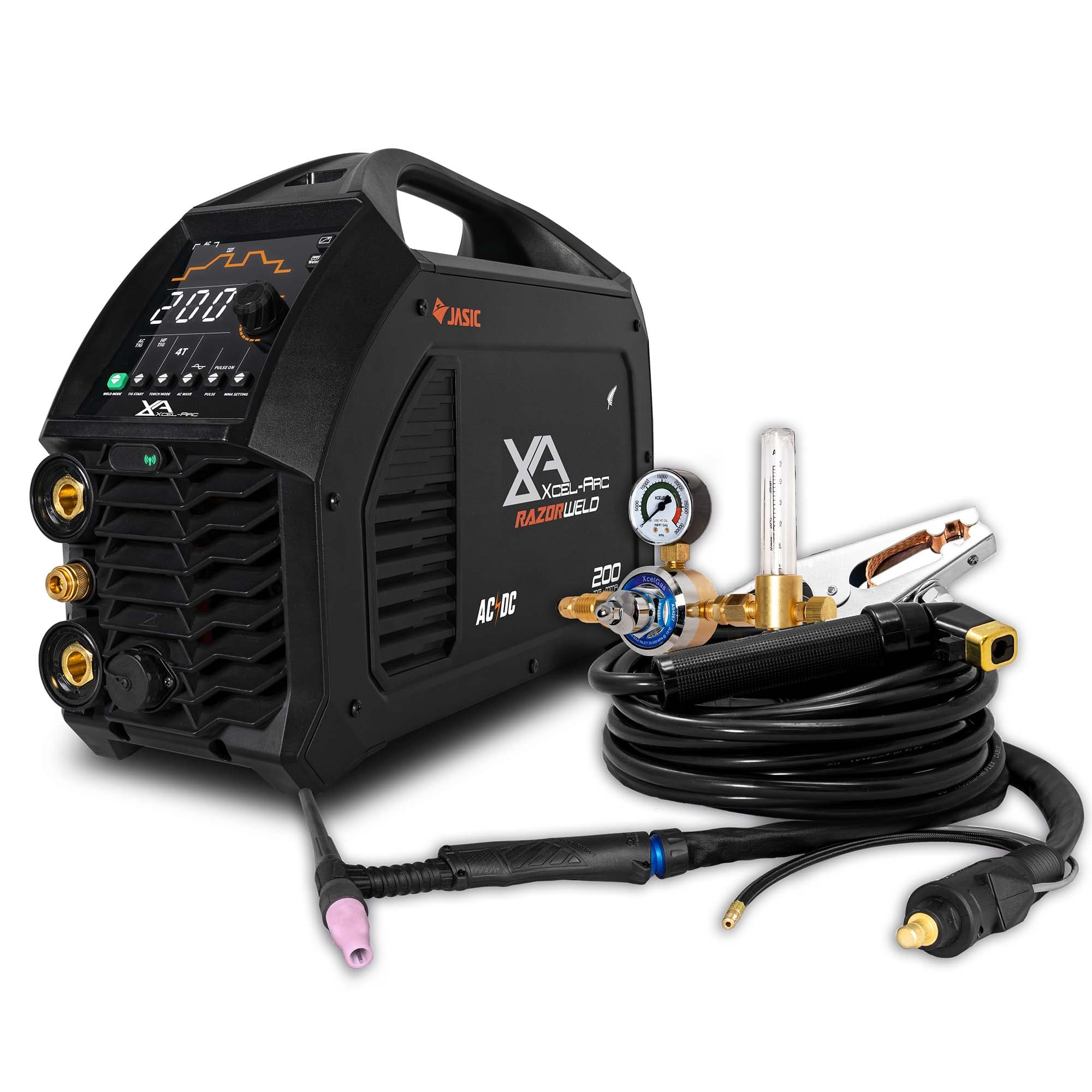

RAZORWELD™ 200 AC/DC PFC TIG Welder
ARC T3FX Flexi Tig Torch x 4m
4m Twist Lock Electrode Holder
4m 300 Amp Earth Clamp & Lead
Argon Regulator
Operating Manual

Here you’ll find the latest manuals, guides & product/parts information.

RAZORWELD TIG200 AC/DC PFC Info Sheet

RAZORWELD TIG200 AC/DC PFC Manual

TIG 200 AC/DC PFC - Quick Setup Guide

Xcel-Arc is pleased to offer a 5-year warranty on RAZORWELD™ 200 AC/DC PFC TIG Machine*.

Xcel-Arc offers warranty across New Zealand with our main Xcel-Arc service centre centrally based in Palmerston North. We also have authorised service centres across New Zealand as well. Xcel-Arc’s focus is to assure the buyer is getting reliability, performance and peace of mind with a quality product.

Xcel-Arc also offers an additional 6 months warranty free of charge when you register your product online via the Xcel-Arc website.

*Please note warranty only applies to the power source only

RECOMMENDED ACCESSORIES

AS7000D Welding Helmet

AS7000D

LEARN MORE

TIG/RIGGERS WORK GLOVES

LEARN MORE

Xcel-arc proban WELDING JACKET - L

LEARN MORE

RAZORWELD™ 200 AC/DC PFC TIG Welder

RAZORWELD™ 200 AC/DC PFC TIG Welder

10 AMP PLUG

AC/DC HIGH FREQUENCY TIG

PULSE FUNCTION

FOOT CONTROL READY

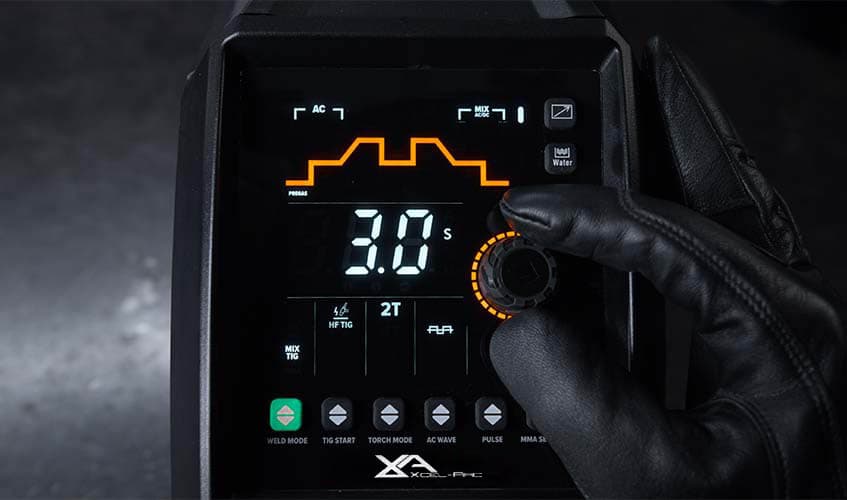

HD BACKLIT INTERFACE

PULSE TIG

10A PLUG

HIGH-FREQUENCY TIG

FOOT CONTROL READY

SMART FAN

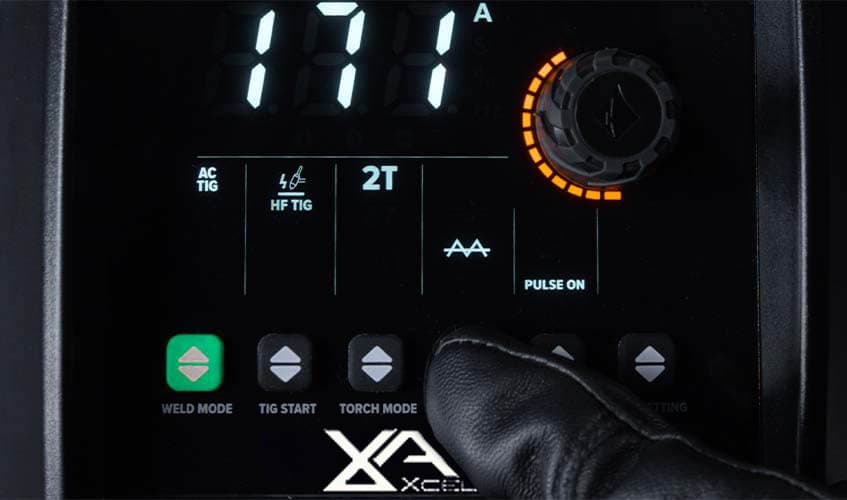

MULTIPLE AC WAVEFORMS
